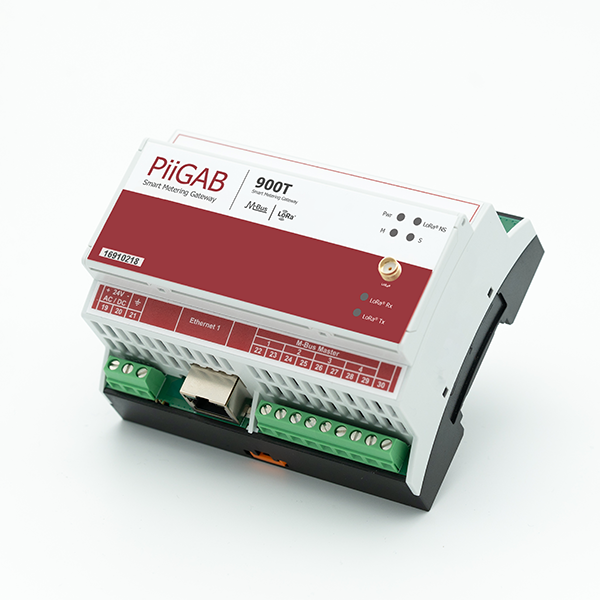

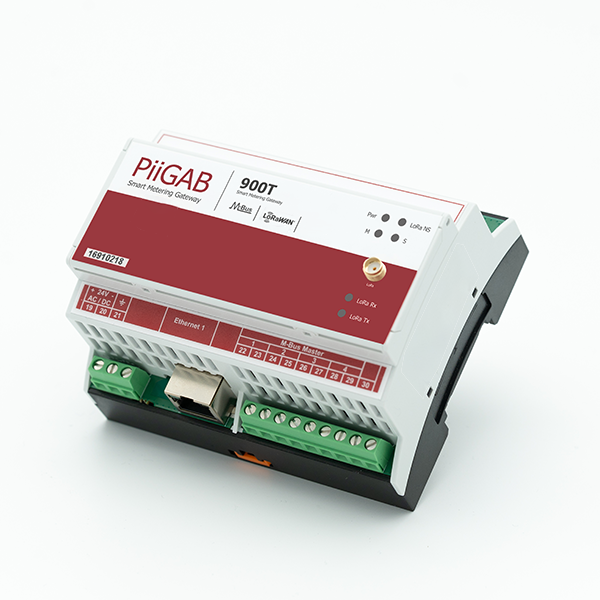

PiiGAB 900T Smart Gateway - M-Bus / LoRaWAN
Item no:
11-10-030
The PiiGAB 900T LoRa is a smart and efficient gateway that makes it easy to collect data from both M-Bus and Modbus TCP as well as LoRaWAN meters. The device acts as a receiver for LoRaWAN sensors that send data to the selected network server. Thanks to a flexible licensing model, you can easily adjust the number of connected loads according to your needs — from smaller installations to larger systems with up to 120 loads without the need for a separate extender.
With the PiiGAB 900T LoRa, you can deliver measurement data to multiple recipients simultaneously, giving you full control and accessibility over your energy measurement and building automation. A reliable and future-proof solution for those who want to streamline their data collection and create better oversight.
- Mix M-Bus and LoRa meters in the system with just one Gateway
- Scalable license model from 5 to 120 loads without a separate extender
- Delivers meter data to multiple receivers simultaneously for full flexibility
Enclosure with 24V power supply & MCB, 267x200, IP65, transparent front hatch
Enclosure with 24V transformer & switch, 300x300, IP65
Enclosure with 24V transformer & switch, 300x200, IP65
Power supply 24VDC, 1.5A, 36W
Configuration of PiiGAB 820/900 - IP address
Configuration of PiiGAB 900 - Meter list (first unit)
Extended warranty to 5 years
The PiiGAB 900T LoRa enables the collection of LoRa, M-Bus, and Modbus TCP meters. Thanks to the LoRa antenna, the device can receive and forward information to any network server, which is easily configured via the device's web interface.
The device has the capacity to handle up to 120 M-Bus loads without the need for external hardware. To read more than 120 M-Bus loads, up to 12 extenders can be connected.
The PiiGAB 900T LoRa can communicate with up to 4 clients simultaneously, such as PLCs, DUCs, or other superior systems via M-Bus, Modbus, and BACnet.
Measurement data can be sent via FTP/SFTP, HTTP-Post/HTTPs-Post, BACnet, and MQTT. The device has many features that enable troubleshooting without on-site visits, the ability to turn off and on 4 individual M-Bus lines, and clear stored fault alarms that facilitate troubleshooting of temporary issues.
Recommended accessories
Complete with matching products and options.
Water meters
Cold water meter - M-Bus / DN15, L110, Q3 (2.5)
Single-jet apartment meter for recording cold tap water in smaller properties and measuring units. The meter is MID-approved, has integrated M-Bus, and is designed for individual water measurement in, for example, apartments and single-family houses.
Water meters
Hot water meter - M-Bus / DN15, L110, Q3 (2.5)
Single-jet apartment meter for recording cold tap water in smaller properties and measuring units. The meter is MID-approved, has integrated M-Bus, and is designed for individual water measurement in, for example, apartments and single-family houses.
Sensors
Temperature & Humidity Sensor, M-Bus
M-Bus sensor for temperature and humidity in properties and technical environments.
Electricity meters
Electricity meter MID 1-phase 32A 230V M-Bus
Single-phase electricity meter MID 32A 230V with M-Bus communication.
Electricity meters
Electricity meter MID 3-phase 5A M-Bus
3-phase electricity meter MID 5A with M-Bus for current transformer connection.
Electricity meters
Electricity meter MID 3-phase, 65A, 400V, M-Bus
3-phase electricity meter MID 65A 400V with M-Bus communication.
Technical specifications
Communication
Protocol
M-Bus, LoRaWAN
Connection
Ethernet
Capacity & system
Capacity
5/35/70/120 loads
Downloads
Here you will find the product's manuals, datasheets, and other documents.
DOCUMENT
DOWNLOAD
PiiGAB 900T M-Bus / wM-Bus / LoRa - Product sheet & datasheet
No file
