Physical
Dimensions
36 x 90 x 62.2 mm
Installation
DIN rail
Enclosure
IP20
Power supply
Powered from the electricity meter via the HAN port
HAN / P1 converter family
HAN Converters

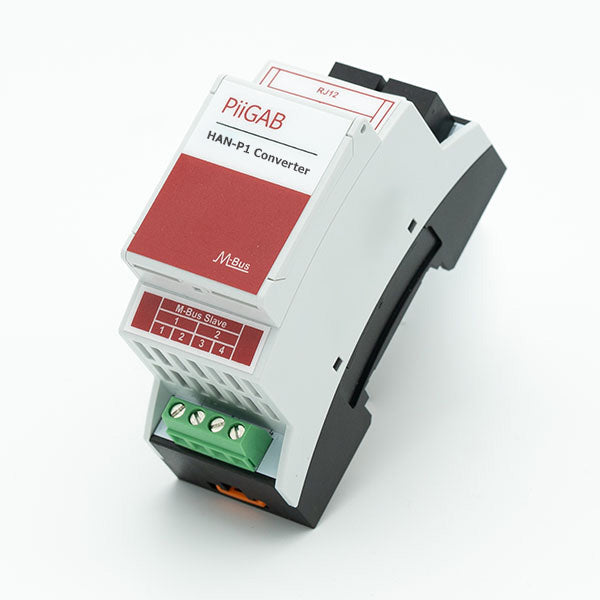

PiiGAB HAN-P1 to M-Bus Converter
Item no:
11-15-005
The PiiGAB HAN-P1 is a compact interface device that makes it easy to read real-time data from compatible energy meters via the HAN P1 port. It provides quick access to important information such as energy consumption and power values and is ideal for integration into energy monitoring, visualization, and smart control systems.
- Simple reading of real-time data via HAN/P1 port, support for 2 electricity meters simultaneously
- Compact solution for quick integration into local systems
- Stable and reliable access to energy data for monitoring and visualization
Cable RJ12 Male/RJ12 Male, 3m
Cable RJ12 Male/RJ12 Male, 5m
Enclosure for PiiGAB HAN-P1 Converter 55x160mm IP30
Power supply kit for Kamstrup OMNIpower & PiiGAB P1 Converter
The PiiGAB HAN-P1 is a compact and reliable solution for reading meter data from compatible energy meters via the HAN/P1 port. The device enables easy access to real-time data such as energy consumption, power, and other relevant measurements, providing excellent conditions for energy monitoring, analysis, and optimization.
Thanks to its smooth integration, the PiiGAB HAN-P1 is well suited for both smaller and larger installations where there is a need to make meter data available for local systems, visualization, or further processing. It is designed for stable and reliable operation and is a practical choice for properties, technical installations, and energy-related applications where easy access to meter data is important.
Technical specifications
Communication
Protocol
M-Bus, HAN-P1
Downloads
Here you will find the product's manuals, datasheets, and other documents.
DOCUMENT
DOWNLOAD
Power Supply Kit - Installation Guide
No file
